Single-phase portable EV chargers are suitable for most residential users, while three-phase models provide higher AC charging power for vehicles with larger onboard chargers. A 230V single-phase charger usually delivers 3.7 kW–7.4 kW, while a 400V three-phase charger can provide 11 kW–22 kW. A 60 kWh EV battery may need about 8 hours at 7.4 kW but around 3 hours at 22 kW. The right choice depends on vehicle charging capacity, electrical supply, cable requirements, and daily mileage.

Portable EV chargers are becoming more common as EV owners look for flexible charging options outside fixed wall-mounted systems. The main difference between single-phase and three-phase chargers is the amount of AC power they can transfer to the vehicle. In 2025, many passenger EVs support AC charging from 7 kW to 11 kW, while some models support 22 kW AC charging when connected to a suitable three-phase supply.

A 7.4 kW single-phase charger can provide enough overnight charging for most daily commuters, while a three-phase charger is designed for users who need faster charging within shorter parking periods.

The electrical structure determines the charging output. Single-phase systems use one live conductor and are commonly available in residential buildings across many countries. Three-phase systems use three separate power lines, allowing more electricity to flow through the same charging period without increasing current on one individual phase.

The charging speed difference becomes more noticeable with larger battery packs. A compact EV with a 40 kWh battery may not require high-power AC charging because the battery can be restored overnight. However, electric SUVs and long-range vehicles with 75–100 kWh batteries may benefit from higher charging power.

For example, charging a 75 kWh battery from 20% to 80% requires approximately 45 kWh of energy. A 7.4 kW charger needs about 6–7 hours under normal conditions, while an 11 kW charger can complete the same process in around 4–5 hours. A 22 kW charger can reduce the time to approximately 2–3 hours if the vehicle supports the input power.

A charger with a higher output rating does not automatically increase charging speed. The vehicle onboard charger determines the maximum AC charging power accepted by the battery system.

Vehicle compatibility should be checked before selecting a portable charger. Many EV models sold in North America and Europe have different onboard AC charging configurations. Some vehicles support only 7.4 kW single-phase charging, while others include 11 kW or 22 kW three-phase capability.

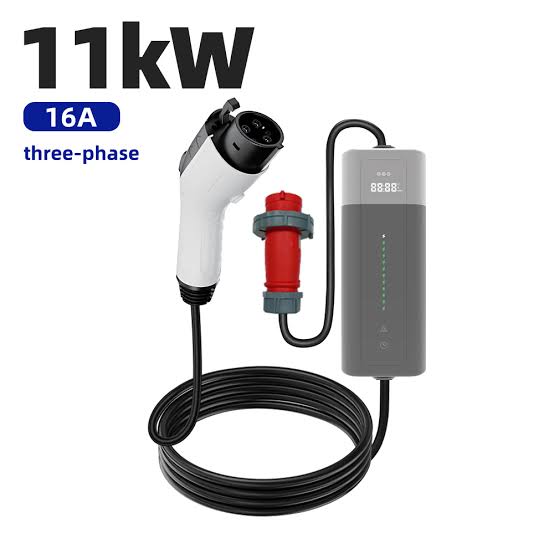

A three-phase portable charger such as an 11 kw portable ev charger can provide faster charging for vehicles equipped with an 11 kW onboard charger. In regions where three-phase electricity is commonly available, 11 kW AC charging has become a standard option for many home and workplace charging locations.

Electrical availability is another factor. A single-phase charger can usually operate through existing residential circuits, while a three-phase charger requires a compatible three-phase connection. Installing a high-power charger without checking the building’s electrical capacity may require upgrades to wiring, protection devices, or distribution equipment.

A typical 7.4 kW charger operating at 32A requires a dedicated circuit with suitable protection equipment. A 22 kW charger operating at 32A across three phases requires additional electrical components because the system handles significantly higher total power. Continuous charging at maximum output also requires proper cable size and connector quality.

Portability differences also affect daily use. Single-phase chargers are usually lighter and easier to store because the internal power electronics are simpler. Many portable units are designed to remain inside the vehicle and serve as backup charging equipment during travel.

Three-phase portable chargers generally contain additional switching components and thermal management systems. A 22 kW model may use thicker cables and larger connectors compared with a 7.4 kW model. For users who frequently move the charger between locations, weight and storage space should be considered.

Charging frequency also changes the suitable choice. A driver traveling 50 km per day may consume approximately 8–10 kWh of energy. A 7.4 kW charger can replace this energy in about 1.5 hours, leaving sufficient time for overnight charging.

Drivers covering 200–300 km per day may consume 40–60 kWh, especially with larger vehicles. In this situation, an 11 kW or 22 kW three-phase charger can reduce charging time when the vehicle returns home with a low battery level.

Outdoor use requires attention to protection ratings and operating conditions. Portable EV chargers used outside should include weather-resistant housing, temperature monitoring, and protection against moisture and dust. Many commercial portable chargers use IP65-rated enclosures, which protect against dust entry and low-pressure water exposure.

Safety functions are included in most modern portable EV charging products. Common protection systems include:

• Overcurrent protection

• Overvoltage protection

• Leakage current detection

• Ground fault monitoring

• Connector temperature monitoring

• Automatic current adjustment

Thermal performance becomes more important as charging power increases. A 22 kW charger transfers nearly three times more power than a 7.4 kW charger, creating higher heat generation in cables, connectors, and electrical components. Manufacturers typically use thicker conductors and improved cooling designs for higher-output products.

Energy efficiency differences between single-phase and three-phase chargers are relatively small. Most AC charging losses come from the vehicle onboard charger rather than the portable EV charger itself. In many cases, conversion efficiency remains above 90% under normal charging conditions.

Purchase cost is another difference between the two types. Single-phase chargers usually have lower prices because they require fewer power components. Three-phase models cost more due to additional electrical hardware and higher output capability.

Regional electrical standards also influence charger selection. In many European countries, three-phase power is widely available in residential and commercial buildings, making 11 kW charging common. In areas where single-phase electricity is more common, 7.4 kW charging remains the practical option for private users.

The selection process should begin with checking three specifications: vehicle AC charging capacity, available electrical supply, and required charging speed. Choosing a 22 kW charger for a vehicle limited to 7.4 kW AC charging increases equipment cost without reducing charging time.

A single-phase portable EV charger remains a practical solution for most daily drivers because it works with common electrical systems and provides enough energy for regular commuting. Three-phase portable chargers are better suited for users who own EVs with higher AC charging capability and have access to compatible electrical infrastructure.

Matching the charger output with the vehicle and power supply provides better charging performance than selecting the highest-rated model available. A properly matched portable charger offers reliable charging, easier installation, and suitable charging speed for real driving needs.
